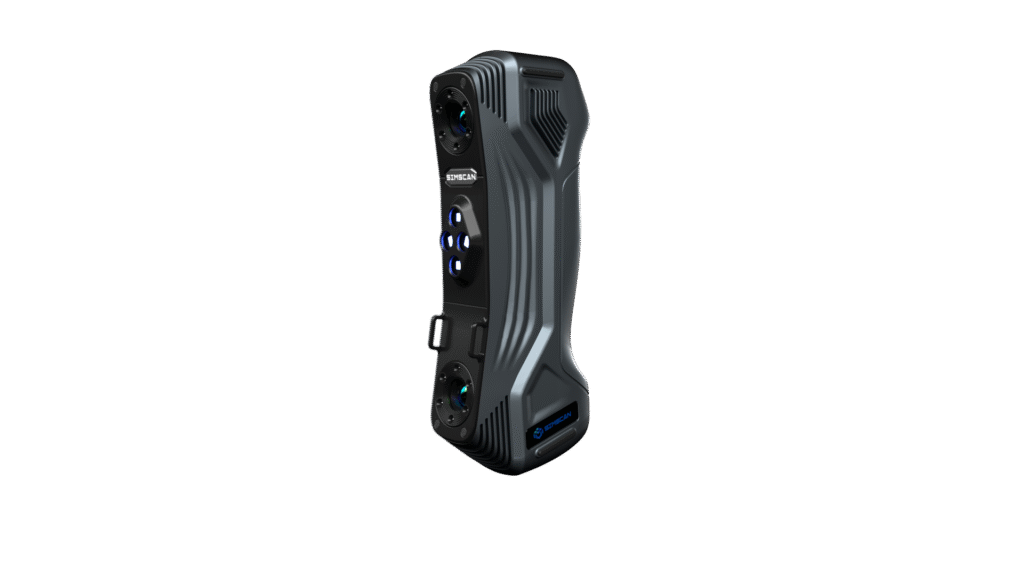

SIMSCAN Portable 3D Laser Scanner
SIMSCAN, a palm-sized portable 3D scanner, is specially designed for 3D scanning narrow and hard-to-reach areas. Featuring full-metal housing, it is incredibly sturdy and reliable. SIMSCAN has become a disruptive innovation among professional 3D scanners due to its compact size, simplicity and robust performance. Its cutting-edge design also wins itself German Red Dot Award and China Design Silver Award.
Narrow-space Measuring Booster
Compared with its competitors, SIMSCAN has a much shorter camera distance of 130 mm, which forms a steeper view angle to 3D scan narrow spaces. Therefore, SIMSCAN is more capable of capturing accurate and complete data in hard-to-reach areas like deep grooves and ensures users to capture full-field data.
Detail, Everywhere
With its built-in HD cameras and three scanning modes, it realizes high-precision scanning with an accuracy up to 0.020 mm. It can accurately capture the 3D data of objects with complex surfaces or in confined areas.
Single-handed Control
SIMSCAN’s full-metal housing provides solid protection and ensures extraordinary durability. Weighted only 570 g and sized 203 × 80 × 44 mm, SIMSCAN portable 3D scanner brings unparalleled simpleness for scanning anything with one hand.
Remarkable Portability
SIMSCAN boasts a compact size and excellent portability. No matter in narrow spaces or under huge objects, SIMSCAN portable 3D scanner can conduct 3D measurements anywhere and anytime. When paired with wireless communication link AirGO Power, it supports mobile 3D scanning and data viewing for truly flexible, reliable, and effective measurement experiences.
For any inquiry regarding SIMSCAN Portable 3D Laser Scanner
Smooth 3D Experience
SIMSCAN can 3D scan objects with a rate up to 2.8 million measurement/s thanks to its sophisticated algorithm. It is designed to offer users a smooth and efficient 3D digitizing experience.
Automated 3D Measurement
It can be paired with Scantech’s automated 3D measurement system to achieve non-stop measurements. Automated high-batch measurement overcomes the limitation of traditional methods and it significantly improves efficiency for all stages of manufacturing.
Skyline scanners range delivers stunning performances
China Design Silver Award
Scanning area up to 700 mm × 600 mm
Camera Distance 130 mm
Accuracy 0.020 mm
Scanning rate up to 2,800,000 measurements/s
Net Weight 570 g
Technical Specifications
| Type | SIMSCAN 42 | SIMSCAN 30 | SIMSCAN 22 | |
| Scan mode | Ultra-fast scanning | 17 blue laser crosses | 11 blue laser crosses | 7 blue laser crosses |
| Hyperfine scanning | 7 blue parallel laser lines | |||
| Deep hole scanning | 1 extra blue laser line | |||
| Accuracy(1) | Up to 0.020 mm (0.0008 in) | |||
| Scanning rate up to | 2,800,000 measurements/s | 2,020,000 measurements/s | 1,250,000 measurements/s | |
| Scanning area up to | 700 mm × 600 mm (27.6 in × 23.6 in) | 650 mm × 550 mm (25.6 in × 21.7 in) | ||
| Laser class | CLASSⅡ (eye-safe) |
|||
| Resolution up to | 0.020 mm (0.0008 in) | |||
| Volume accuracy(2) | Standard | 0.015 mm + 0.035 mm/m (0.0006 in + 0.0004 in/ft) | ||
| Paired with MSCAN-L15 | 0.015 mm + 0.012 mm/m (0.0006 in + 0.00014 in/ft) | |||
| Stand-off distance | 300 mm (11.8 in) | |||
| Depth of field | 550 mm (21.7 in) | |||
| Output formats | .stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk and etc. | |||
| Operating temperature range | -10℃–40℃ (14℉-104℉) | |||
| Interface mode | USB 3.0 | |||
| Dimensions | 203 mm × 80 mm × 44 mm (8.0 in × 3.1 in × 1.7 in) | |||
| Weight | 570 g (1.26 lb) | |||
| Patents | CN204329903U, CN104501740B, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204902785U, CN106403845B, CN110030946B, CN212300269U, CN211904059U, CN211696268U, CN306053019S, CN212606697U, CN306321502S | |||
